Air/Water/Oil Differential Pressure Sensor Output 4-20mA HART
The differential pressure sensor is used to measure the pressure difference between different parts of the same equipment or different medium, especially for air/water/oil differential pressure measurement. Accuracy up to 0.075% FS, measuring range 0~3MPa / 0~30bar / 0~435psi. The differential pressure sensor output signal has the current (4-20mA / 0-20mA), voltage (0-5V / 1-5V) or 4-20mA HART.

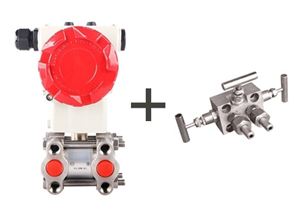

The three valves manifold is usually used with the differential pressure sensor, which is a tool that is required to install and remove the differential pressure sensor. The three valves manifold consists of a valve body, a balancing valve and two shut-off valves. In the three valves manifold, the middle is the balancing valve, the right side is the low pressure valve, and the left side is the high pressure valve. The function of the three valves manifold is to connect or disconnect the connection between the positive/negative pressure measuring chambers and the pressure point of the differential pressure sensor, or directly disconnect or conduct the positive and negative pressure measuring chambers.
Differential pressure sensor specification
Differential pressure sensor mounting diagram
Differential pressure sensor wiring diagram
The three valves manifold is usually used with the differential pressure sensor, which is a tool that is required to install and remove the differential pressure sensor. The three valves manifold consists of a valve body, a balancing valve and two shut-off valves. In the three valves manifold, the middle is the balancing valve, the right side is the low pressure valve, and the left side is the high pressure valve. The function of the three valves manifold is to connect or disconnect the connection between the positive/negative pressure measuring chambers and the pressure point of the differential pressure sensor, or directly disconnect or conduct the positive and negative pressure measuring chambers.
Differential pressure sensor specification
|
Model |
ATO-PRES-2051 |
|
Weight |
1.6kg |
|
Measuring range |
0~3MPa (0~30bar/0~435 psi) |
|
Range ratio |
10:1 (minimum), 100:1 (maximum) |
|
Pressure type |
Gauge pressure, absolute pressure, sealed pressure |
|
Measure medium |
Air, water, oil |
|
Power supply |
DC 24V |
|
Accuracy |
±0.075%FS |
|
Zero temperature drift |
±0.03%FS/℃ |
|
Long term stability |
≤0.1%FS/3 years |
|
Overload pressure |
200%FS |
|
Operating temperature |
-40~+80℃ (-40~+176℉) |
|
Medium temperature |
-40~+60℃ (-40~+140℉) |
|
Material |
Housing: 316L stainless steel Fill fluid: silicon oil Pressure port: 316L stainless steel Separating diaphragm: 316L stainless steel |
|
Connection |
The connecting thread on the pressure tap is NPT1/2. The thread of the output cable connection hole is M20*1.5. |
|
Protection class |
IP67 |
|
Additional options |
LCD display with backlight |
|
Accessories |
Mounting bracket, Mounting bracket, stainless steel 3-valve group |

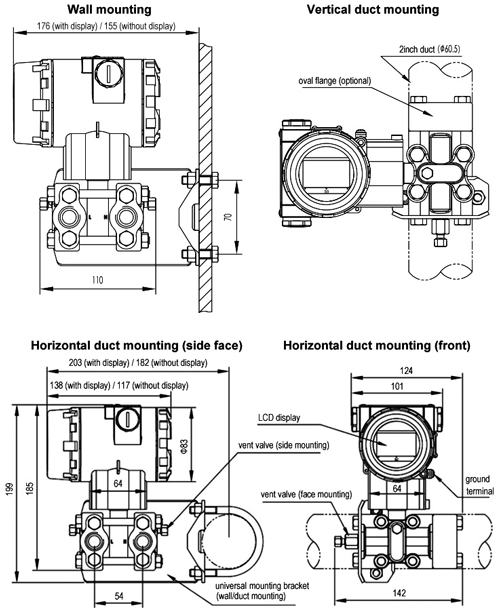

Differential pressure sensor mounting diagram

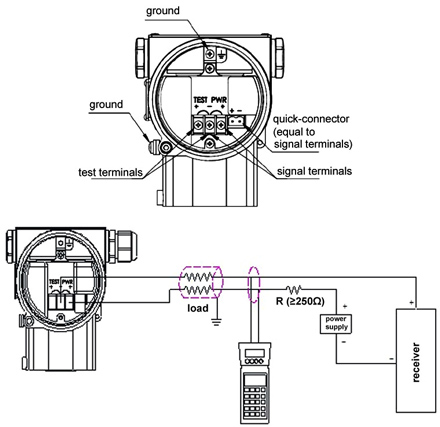

Differential pressure sensor wiring diagram
