Air/Water/Oil Pressure Sensor Output 4-20mA/0-5V/RS485
This pressure sensor can be used for air/water/oil pressure measurement.
It uses the piezoresistive principle and the core components are made of high-performance silicon pressure cores. The measuring range -0.1~100MPa/ -1~1000bar/ -14~14503psi, medium temperature -40~+60℃ (-40~+140℉). The housing of the pressure sensor is a 304/316L stainless steel sealing structure, which has small size and light weight. It has good anti-vibration and anti-shock performance. The pressure sensor output signal are available with standard current (4-20mA / 0-20mA), voltage (0-5V / 1-5V / 0-10V) and RS485 signal.
Stability is an important performance specification for a pressure sensor. It refers to the ability of a pressure sensor to remain unchanged after a period of use. If the pressure sensor need to operating for a long time and it is difficult to replace or recalibrate it under certain environment, it requires high stability for the pressure sensor. The main factor affecting the long-term stability of pressure sensors is their application environment. Therefore, before selecting a pressure sensor, it is necessary to have a good grasp of the environment in which it is used, and select a right product according to the specific environmental characteristics.
Air/water/oil pressure sensor specification

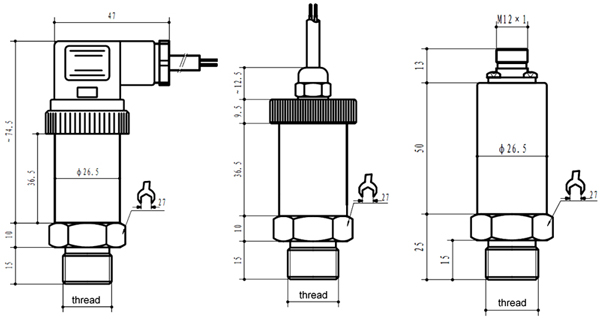

Pressure sensor dimension drawing

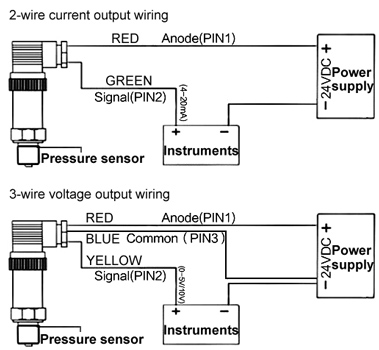

Pressure sensor wiring diagram
It uses the piezoresistive principle and the core components are made of high-performance silicon pressure cores. The measuring range -0.1~100MPa/ -1~1000bar/ -14~14503psi, medium temperature -40~+60℃ (-40~+140℉). The housing of the pressure sensor is a 304/316L stainless steel sealing structure, which has small size and light weight. It has good anti-vibration and anti-shock performance. The pressure sensor output signal are available with standard current (4-20mA / 0-20mA), voltage (0-5V / 1-5V / 0-10V) and RS485 signal.Stability is an important performance specification for a pressure sensor. It refers to the ability of a pressure sensor to remain unchanged after a period of use. If the pressure sensor need to operating for a long time and it is difficult to replace or recalibrate it under certain environment, it requires high stability for the pressure sensor. The main factor affecting the long-term stability of pressure sensors is their application environment. Therefore, before selecting a pressure sensor, it is necessary to have a good grasp of the environment in which it is used, and select a right product according to the specific environmental characteristics.
Air/water/oil pressure sensor specification
|
Model |
ATO-PRES-P300 |
|
Weight |
0.4kg |
|
Measuring range |
-0.1~100MPa (-1~1000bar/-14~14503psi) |
|
Pressure type |
Gauge pressure, absolute pressure, sealed pressure |
|
Measure medium |
Air, water, oil (non-explosion proof area) |
|
Power supply |
DC 12V, DC 24V, DC 12-36V |
|
Output signal |
2 wire: 4-20mA, 0-20mA 3 wire: 0-5V, 1-5V, 0-10V RS485 |
|
Accuracy |
±0.5%FS, ±0.3%FS |
|
Zero temperature drift |
±0.03%FS/℃ |
|
Sensitivity temperature drift |
±0.03%FS/℃ |
|
Long term stability |
≤0.2%FS/year |
|
Overload pressure |
200%FS |
|
Frequency response (-3dB) |
5kHz~650kHz |
|
Electrical connection |
DIN connector type, M12 circuilar connector type, direct lead wire type |
|
Thread of pressure connection |
G1/4, G1/2, 1/4NPT, 1/2NPT, M14*1.5, M20*1.5 |
|
Response time |
＜10ms |
|
Operating temperature |
-40~+80℃ (-40~+176℉) |
|
Medium temperature |
-40~+60℃ (-40~+140℉) |
|
Material |
Housing: 304/316L stainless steel Fill fluid: silicon oil Pressure port: 304/316L stainless steel Separating diaphragm: 304/316L stainless steel Sealing: FKM (medium temperature ≤ +200℃/+392℉), EPDM, NBR |
|
Cable length |
2m |
|
Protection class |
IP65 |
Pressure sensor dimension drawing
Pressure sensor wiring diagram
