Diaphragm Pressure Transducer for Viscous Liquid/Water

Diaphragm pressure transducers are used for viscous liquid/water pressure measurement. The separating diaphragm is made of 304/316L stainless steel, which prevent clogging of viscous liquid. For the diaphragm pressure transducer, it can be used not only for industrial pressure measurement, but also for food production processes. The diaphragm pressure transducer is small in size, light in weight, and has high vibration and shock resistance. The internal ASIC converts the mV signal to standard current (4-20mA / 0-20mA), voltage (0-5V / 1-5V / 0-10V) or RS485 signal. Measuring range of the pressure transducer are available in 0~35MPa / 0~350bar / 0~5076psi, medium temperature -40~ + 60℃ (-40~ + 140℉).

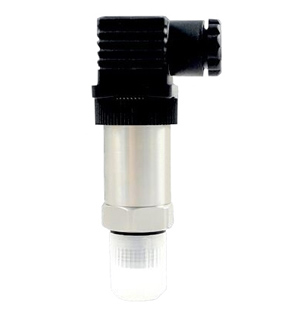

Diaphragm pressure transducer for viscous liquid/water

Diaphragm pressure transducer specification
Model
ATO-PRES-P350
Weight
0.4kg
Measuring range
0~35MPa (0~350bar/0~5076psi)
Pressure type
Gauge pressure, absolute pressure, sealed pressure
Measure medium
Pure water, wine, fruit juice, viscous liquid
Power supply
DC 12V, DC 24V, DC 12-36V
Output signal
2 wire: 4-20mA, 0-20mA
3 wire: 0-5V, 1-5V, 0-10V
RS485
Accuracy
±0.5%FS, ±0.3%FS
Zero temperature drift
±0.03%FS/℃
Sensitivity temperature drift
±0.03%FS/℃
Long term stability
≤0.2%FS/year
Overload pressure
200%FS
Frequency response (-3dB)
5kHz~650kHz
Electrical connection
DIN connector type, M12 circuilar connector type, direct lead wire type
Thread of pressure connection
G1/4, G1/2, 1/4NPT, 1/2NPT, M14*1.5, M20*1.5
Response time
<10ms
Operating temperature
-40~+80℃ (-40~+176℉)
Medium temperature
-40~+60℃ (-40~+140℉)
Material
Housing: 304/316L stainless steel
Fill fluid: silicon oil
Pressure port: 304/316L stainless steel
Separating diaphragm: 304/316L stainless steel
Sealing: FKM (medium temperature ≤ +200℃/+392℉), EPDM, NBR
Cable length
2m
Protection class
IP65

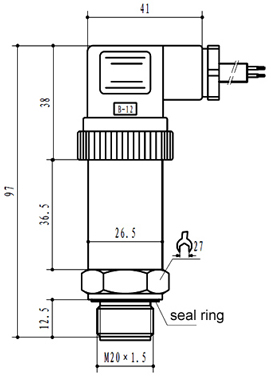

Diaphragm pressure transducer dimension drawing
Diaphragm pressure transducer dimension drawing

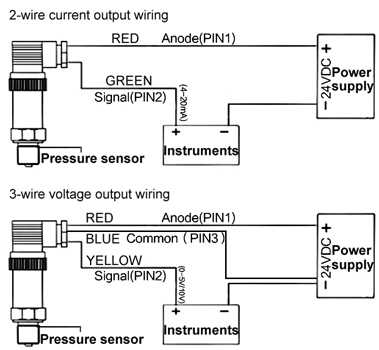

Diaphragm pressure transducer wiring diagram
Diaphragm pressure transducer wiring diagram
